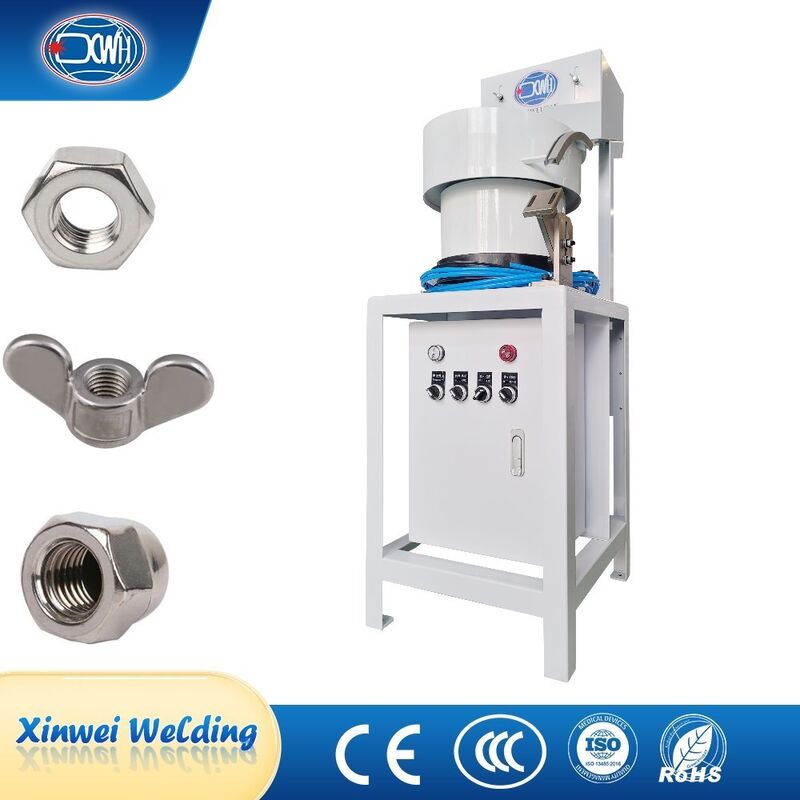

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder

Nome da marca:	XWH
Número do modelo:	D (n) b-100 ， d (n) b-160, d (n) b-200, d (n) b --250
MOQ:	1
preço:	USD2500-USD4000
Condições de pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacidade de abastecimento:	50 conjuntos/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

CE, RoHs

Nome do produto:

Alimentador de peças de porca M6

Aplicação:

Equipamento alimentador de tigela de nozes M6

Uso:

Alimentador automático de rebites por porca de cobre

Tipo de máquina:

Alimentação automática

Palavra-chave:

Alimentador de escolha e posicionamento de nozes M10

Cor:

Personalizado

Recurso:

Preço do alimentador vibratório

Garantia:

Garantia de 12 meses

Após o serviço de garantia:

Suporte técnico em vídeo, suporte on -line e peças de reposição

Serviço pós-venda fornecido:

Peças de reposição gratuitas, instalação de campo, comissionamento e treinamento

Detalhes da embalagem:

caixa de madeira

Habilidade da fonte:

50 conjuntos/mês

Destacar:

automatic weld nut feeder

rotary bowl wing nut feeder

linear vibration screw feeder

Descrição do produto

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder

Product Introduction:

Nut conveyor is the preferred solution for large-scale and repetitive threaded connection processes. It is widely used in the automotive industry (engine, chassis, wheel hub assembly), home appliance manufacturing (washing machines, air conditioners, microwave ovens), electronic communication (server chassis, communication base stations), as well as furniture and hardware industries. It can play an irreplaceable role in any scenario that requires efficient and reliable completion of a large number of nut locking tasks, and has extremely high requirements for tightening quality and consistency.

Features:

1. High speed conveying capacity: Using compressed air as the power core, the nut is instantly blown to the designated position through a precisely designed conveying pipeline, and the entire process is completed in milliseconds. It is particularly suitable for assembly lines with extremely high production pace requirements and can significantly improve overall assembly efficiency.

2. Simplified system structure: mainly composed of vibration disk sorting unit and high-pressure blowing unit, with fewer mechanical moving parts. This concise design brings higher reliability and lower failure rates, and daily maintenance work is relatively simple, usually only requiring ensuring a clean gas source and smooth track.

3. Excellent cost-effectiveness: This type of solution is one of the lowest initial investment and long-term maintenance costs in achieving automated conveying functionality. It provides an ideal entry point for many businesses with limited budgets or those seeking quick automation returns, with a short investment payback period.

4. Flexible installation adaptability: The conveying pipeline can be flexibly laid out according to the spatial layout of on-site equipment and workstations, and can bypass some obstacles to deliver nuts to narrow or special angle positions that are not easily accessible by robotic arms.

Technical Parameters:

Power Supply	AC220V, 50Hz / 60Hz; Max 250 - 400VA
Nut Shapes	Square, round. Hexagon, T, dome, with cover, with rib, collar etc.
Air Pressure	0.25 - 0.4MPa
Sizes	M4 - M12, 7/16
Bowl Size	φ260mm, φ350mm
Hopper Capacity	9L (10,000 pcs for M6 nut)
Supply Capacity	40 - 60pcs/min
Supply Chute Length	2m
Angle	0° - 90°
Weight	50kg

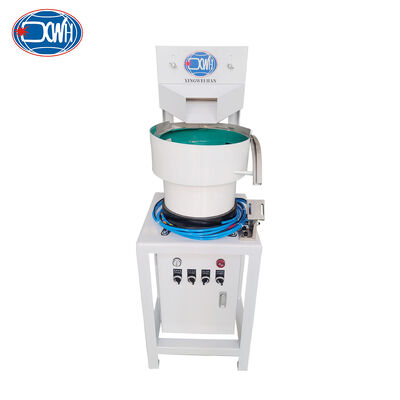

General Structures:

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder 0

Detailed Images:

Transportation Pipeline: It is usually a flexible hose made of polyurethane or nylon material, with quick couplings at both ends. As an exclusive track connecting the host and the workstation. After the separated individual nuts enter the pipeline, they will be pushed by compressed air (blowing type) or mechanical mechanism (pushing type) that opens instantly, flying at high speed inside the pipeline and reaching the feeding nozzle at the end. Its flexibility ensures that it can bend freely with the robotic arm or moving mechanism.

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder 1

Control System: The core is usually a programmable logic controller (PLC) or embedded microprocessor. It is the 'central nervous system' of the device. Receive instructions from various sensors and production line controllers, and then issue precise commands to control the start and stop of the vibration plate, the speed of direct vibration, the rhythm of the separation mechanism, and the opening/closing of the air valve. It can also perform basic fault diagnosis, such as material shortage, blockage, and delivery timeout, and issue sound and light alarms.

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder 2

Direct Vibration Feeder: A linear vibration track, usually separated from but tightly connected to the vibration disc base. It serves as a 'buffer and acceleration channel'. Receive the directional nut gushing out from the outlet of the vibrating disc, and through its own linear vibration, smoothly and continuously transport the nut to the next stage - the separation mechanism. It can effectively eliminate congestion at the outlet of the vibrating disc and provide stable and uniform nut flow for separation.

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder 3

Pneumatic System: Including gas source interface, filter, pressure reducing valve, oil mist device (triple piece), and solenoid valve. The 'power muscles' that make up the device. Provide clean, dry, and pressure stable compressed air. This airflow is both the "power source" that drives the nut to move at high speed inside the pipeline, and may also be the "driver" that drives the cylinder type separation mechanism.

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder 4

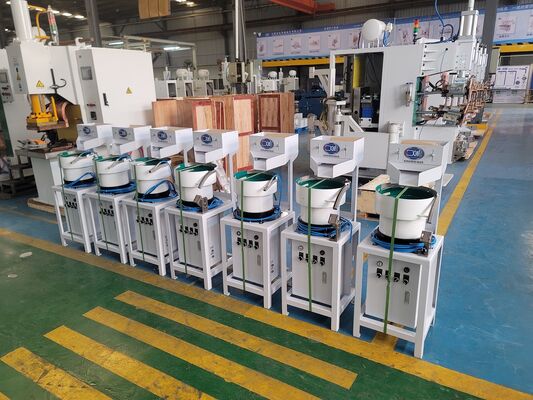

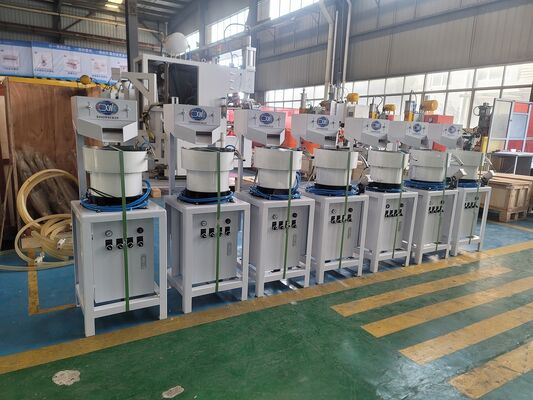

Scene Images:

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder 5

Application:

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder 6

Supporting Point Projection Welding Machines:

The nut conveyor and fixed spot welding machine are typically connected in series within automated production lines, forming an efficient nut welding unit. Their collaborative process is as follows: First, the nut conveyor uses a vibratory bowl for orientation and alignment, precisely blowing nuts through pneumatic tubes onto the positioning pins of the welding gun electrode head. Next, the spot welding machine drives the upper electrode to descend, ensuring the workpiece and nut are tightly pressed together, while the internal clamping device of the conveyor supports the nut from the rear to prevent displacement. Finally, the spot welding machine applies a high instantaneous current, causing the nut's welding protrusion and the workpiece contact surface to melt instantly, forming a weld nugget and achieving permanent fixation. The entire process is coordinated via PLC signals, enabling seamless integration of automatic nut feeding, precise positioning, and high-strength welding, significantly improving production cycle time and welding quality consistency.

Double Heads Capacitor Energy Storage Point Projection Welding Machine

This double headed nut energy storage welding machine achieves efficient dual station synchronous welding by equipping two independent nut conveyors. It can simultaneously implant nuts at two points on the workpiece, which can nearly double the efficiency compared to single head equipment and greatly optimize the production cycle. This design is particularly suitable for sheet metal parts, chassis cabinets, and other products that require intensive welding of multiple nuts. While ensuring precise positioning and firm welding, it also ensures the continuity and high output of the production process.

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
