Customizable Chromium Zirconium Copper Electrode Pedal Spot Welding Machine

Customizable Chromium Zirconium Copper Electrode Pedal Spot Welding Machine

Nome da marca:	XWH
Número do modelo:	DN-10, DN-16, DN-25, DN-35
MOQ:	1
preço:	USD600-USD700
Condições de pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacidade de abastecimento:	500 conjuntos/mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

Nome do produto:

Máquina de solda a ponto com pedal

Aplicação:

Máquina de soldar malhas de revestimento de aço

Tipo de máquina:

Solda à vista de resiatância

Palavra-chave:

Máquina de soldadura por pontos de resistência

Função:

Máquina de solda de resistência à malha

Após o serviço de garantia:

Suporte técnico em vídeo, suporte on -line e peças de reposição

Serviço pós-venda fornecido:

Peças de reposição gratuitas, instalação de campo, comissionamento e treinamento

Certificação:

Detalhes da embalagem:

caixa de madeira

Habilidade da fonte:

500 conjuntos/mês

Destacar:

chromium zirconium copper electrode spot welder

customizable pedal spot welding machine

manual spot welder with copper electrode

Descrição do produto

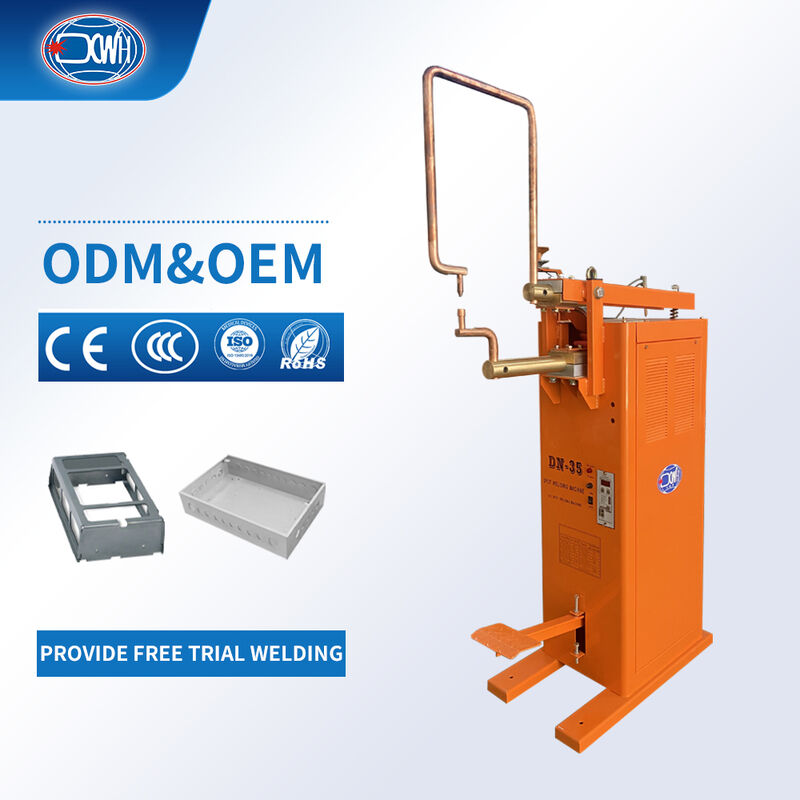

Customizable Chromium Zirconium Copper Electrode Pedal Spot Welding Machine

Product Introduction:

This is a customized spot welding machine based on the upgrade of standard welding machines. Its core feature is the use of specially designed chromium zirconium copper anisotropic welding joints according to customer needs, perfectly adapting to the welding requirements of special workpieces. The whole machine has a compact structure, light weight, and flexible movement and placement. Adopting the classic lever pedal spring compression structure, the pressure is stable and the operation is effortless. Suitable for processing various materials such as low-carbon steel, wire, and stainless steel plates, the welding time can be precisely adjusted to ensure high repeatability and reliability of each welding process. It is an economical and practical choice that meets specific production lines.

Technical Parameters:

Models/Item	DN-35	DN-25	DN-16	DN-10
Rated Power at 50%	35KVA	25KVA	16KVA	10KVA
Rated Primary Power	380V	380V	380V	380V
Rated Primary Current	92A	66A	42.1A	26.3A
Rated Duty Cycle	10%	10%	10%	10%
Secondary Unload Voltage	2.6～4.2V	2.3～3.55V	1.98～3.01V	1.65～2.4V
Adjustment Rated	4	4	4	4
Welding Time Adjustment	0～9.99s	0～9.99s	0～9.99s	0～9.99s
Arms Length	280mm	280mm	280mm	260mm
Max. Welding Capacity	3+3mm	2.5+2.5mm	2+2mm	1.5+1.5mm
Cooling Ways	Main Transformer: Air air cooling Electrode: Water cooling

Features:

1. Reasonable lever pressurization and force distribution power transmission structure, easy to operate and flexible.

2. Insulation design: Insulation design is used between the welding circuit and the body to avoid power consumption while ensuring safety.

3. Fully digital control system with control circuit, welding, stability, and no spark splashing.

4. The welding arm moves vertically and can be used for single spot welding and row welding. The lower electrode arm can be adjusted in the up, down, left, right, front, and back directions, which can be used for complex welding processes.

5. Application scope: Widely used in metal container manufacturing, construction machinery repair, automotive parts, bicycle parts, special-shaped marking standards, electronic components, instruments and meters, electrical switches, cable production, filters, silencers, metal packaging, chemical containers, wire mesh, mesh baskets and other metal product industries.

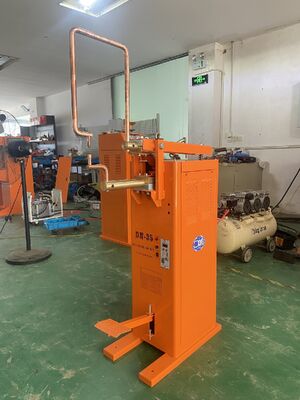

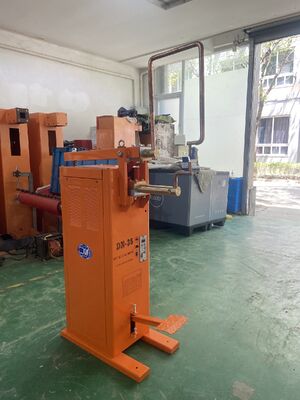

General Structures:

Customizable Chromium Zirconium Copper Electrode Pedal Spot Welding Machine 0

Customized Service:

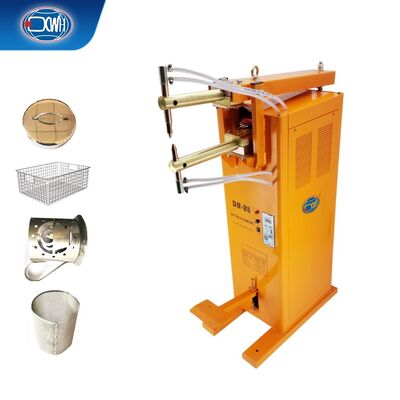

Standard Type: general structures with pointed electrode, can weld welding wire crafts, daily hardware, furniture lighting, box and sheet metal parts.

Customizable Chromium Zirconium Copper Electrode Pedal Spot Welding Machine 2

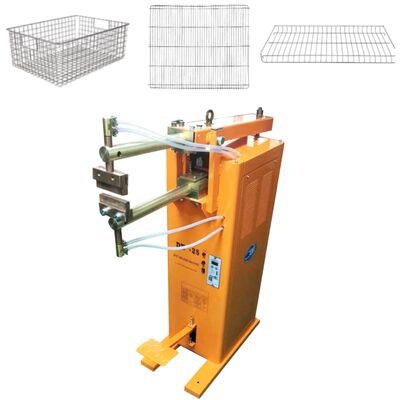

Customized Type: Its welding arm can be customized and lengthened or equipped with a dedicated welding head according to your specific needs, making it easy to handle welding of products such as metal wire mesh and steel mesh. In addition, the welding arm material is available in high conductivity chromium zirconium copper or high-temperature resistant tungsten materials, which can even meet the welding requirements of special materials such as copper. It is a truly economical and practical welding machine designed for diverse scenarios.

Application:

Customizable Chromium Zirconium Copper Electrode Pedal Spot Welding Machine 4

Customizable Chromium Zirconium Copper Electrode Pedal Spot Welding Machine 5

Please note: the welding machine can be custom-made according to your requirements.

Frequently Asked Questions:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
